- GIGABYTE
- Ново
Цена
€103 58 / 202 58 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/bg/Motherboard/B550M-GAMING-X-rev-12
Model
B550M GAMING X
Socket
AMD AM4
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
CPU's supported
AMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
Chipset
AMD B550
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

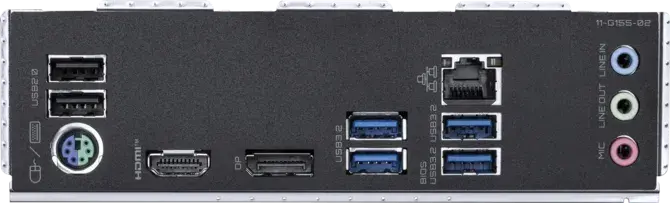

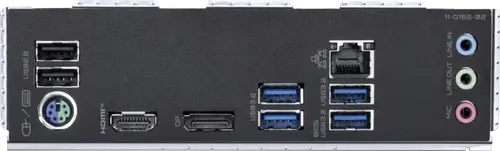

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x DisplayPort
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Dimensions
24.4cm x 24.4cm
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Socket | AMD AM4 |
| Vendor_url | https://www.gigabyte.com/bg/Motherboard/B550M-GAMING-X-rev-12 |
| Chipset | AMD B550 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| CPU's supported | AMD Socket AM4, support for: |
| CPU's supported | AMD Ryzen™ 5000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 5000 Series Processors/ |
| CPU's supported | AMD Ryzen™ 4000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 3000 G-Series Processors/ |
| CPU's supported | AMD Ryzen™ 3000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules |
| Memory type | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory |
| Memory type | Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules |
| Form Factor | Micro ATX |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | Realtek® ALC1220 CODEC |
| Audio | * The back panel line out jack supports DSD audio. |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Model | B550M GAMING X |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| Expansion Slots | - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 |
| Expansion Slots | - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Dimensions | 24.4cm x 24.4cm |
| Graphics | * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Graphics | Maximum shared memory of 16 GB |
| Graphics | * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| Storage | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
| Storage | 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs |
| Storage | - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs |
| Storage | - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 1 x serial port header |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x system fan header |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 1 x USB 2.0/1.1 header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | Back Panel Connectors |
| Connectors | 2 x USB 2.0/1.1 ports |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 4 x USB 3.2 Gen 1 ports |
| Connectors | 1 x RJ-45 port |
| Connectors | 2 x antenna connectors |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x DisplayPort |
| Connectors | 1 x HDMI port |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| USB | CPU: |
| USB | - 4 x USB 3.2 Gen 1 ports on the back panel |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| USB | - 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| USB | - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AMD AM4 |
| Форм фактор | microATX (mATX) |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет (count) | 4 |
| Максимална памет (GB) | 128 |
| M.2 слотове (count) | 2 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 2 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 1 Gbps |
| USB-C портове (count) | 0 |
| RGB подсветка | Да |
| Тегло | 0.00кг |
Внимание! Тъй като не всички вносители подават коректно данните за продуктите, информацията по-долу е извлечена с помощта на изкуствен интелект от различни източници в интернет и не е 100% коректна. Ако се съмнявате в нещо, моля свържете се с нас, за да проверим точно желаните от вас характеристики.
GIGABYTE B550M GAMING X – компактна дънна платка за AM4 с PCIe 4.0
GIGABYTE B550M GAMING X е компактна microATX платка с чипсет AMD B550. Поддържа PCIe 4.0 за съвременни видеокарти и NVMe SSD дискове и работи с процесори AMD Ryzen за сокет AM4. Добър избор за геймърска или домашна конфигурация на разумна цена.
Ключови Предимства
- Поддръжка на PCIe 4.0 — основният x16 слот за видеокарта и първият M.2 слот работят с PCIe 4.0 при съвместим процесор Ryzen. Така видеокартата и NVMe дискът работят по-бързо.
- Два M.2 слота — можете да сложите два NVMe SSD диска, например един за системата и един за игрите.
- До 128 GB DDR4 — четири слота за памет с двуканален режим. Можете да започнете с по-малко памет и да добавите още по-късно.
- Компактен microATX формат — побира се в midi tower и по-малки mATX кутии и има всичко, от което се нуждае един геймър.
- Работи с вградена графика — видеоизходите на задния панел позволяват да ползвате Ryzen APU без отделна видеокарта.
- Надеждна гигабитова мрежа — вграденият 1 Gbps Ethernet дава стабилна кабелна връзка за онлайн игри и стрийминг.
Технически Спецификации
| Характеристика | Стойност |
|---|---|
| Производител | GIGABYTE |
| Модел | B550M GAMING X (rev. 1.2) |
| Сокет | AMD AM4 |
| Чипсет | AMD B550 |
| Форм фактор | microATX (mATX) |
| Тип памет | DDR4, двуканална |
| Слотове за памет | 4 x DIMM |
| Максимална памет | 128 GB |
| M.2 слотове | 2 (основният е PCIe 4.0 x4 от процесора) |
| SATA портове | 4 x SATA 6 Gb/s |
| Слотове за разширение | 1 x PCIe 4.0 x16, 1 x PCIe x16 (работи в режим x4) |
| LAN | 1 Gbps Ethernet |
| Wi-Fi | Не |
| EAN | 4719331870096 |
Какво има в кутията
- Дънна платка GIGABYTE B550M GAMING X
- Ръководство за потребителя
- SATA кабели
- Винт(ове) за M.2
